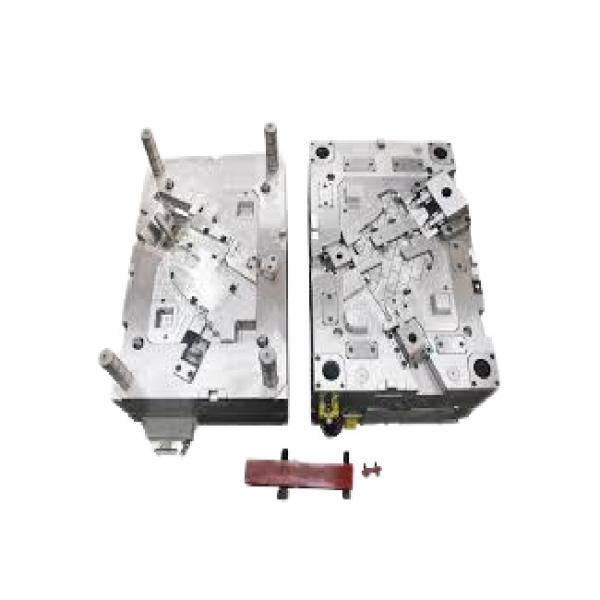

S136 SKD61 Core Plastic Crate Mould HDPE Injection Molding For Electrical

Brand Name : Customized

Model Number : Customized

Certification : ISO9001

Place of Origin : China

MOQ : Negotiated

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 sets/month

Delivery Time : 30 working days

Packaging Details : Wooden case, Carton

Product Name : Customized Plastic Injection Molds

Cavity : Single / Multiple Cavity

Mold Base Material : LKM, FUTA, HASCO, DME etc.

Core & Cavity Material : Nak80, P20, H718, S136, SKD61, 2738, DC53, H13 etc.

Plastic Material : PS, ABS, PP, PVC, PMMA, PBT, PC, POM, PA66, PA6, PBT+GF, PC/ABS, PEEK, HDPE, TPU, PET, PPO etc.

Other Materials : Rubber, slilconce rubber, LSR, aluminum, zinc, copper, metal etc.

Mold Life : 300,000 to 1,000,000 Shots (According to working environment)

Tolerance : 0.02mm -0.05mm

Runner : Hot runner, cold runner

Gate : Side gate, sub gate, pin point gate

Surface Finish : Texture/Sandy/MT/YS/SPI/EDM finish/smooth/glossy

Plastic Injection Machine : 90T,138T,160T,168T,200T,260T,320T,400T,488T,600T,1000T

Application : Auto, home appliances, electronics, medical, aviation, communications, etc.

Contact Now

Plastic Injection Mold Custom Plastic Parts Factory

Plastic Injection Molds Description:

The plastic mold consists of a movable mold and a fixed mold. The movable mold is installed on the movable template of the injection molding machine, and the fixed mold is installed on the fixed template of the injection molding machine. During injection molding, the movable mold and the fixed mold are closed to form a gating system and a cavity. When the mold is opened, the movable mold and the fixed mold are separated, and the plastic product is taken out.

Plastic Injection Molds Parameter:

Description Plastic Injection Mould
Lead Time 30 Days
Size Customized
Application Industry Plastic Parts
Color Customized
Model Number OEM

Plastic Injection Molds Factory Introduction:

Huishuo Co., Ltd. is located in Dongguan City, China, and has been committed to the design and manufacture of precision metal stamping dies and injection molds since 2009, including metal stamping and injection molding. In terms of progressive stamping dies, our products mainly involve precision terminals, connectors, contacts, clips, shrapnel, shells, shielding covers, etc. In metal stamping, there are many precision presses with tonnage ranging from 25T-160T, all of which are gantry high-speed machines. It can produce various coils and strips with a degree of 0.05-4.0mm. The stamping materials include cold rolled steel, stainless steel, phosphor bronze, brass, red copper, beryllium copper, lead frame materials, etc. Regarding plastic injection molding production, we have many injection molding machines of various types between 50-160T, focusing on the production and processing of various plastic products.

S136 SKD61 Core Plastic Crate Mould HDPE Injection Molding For Electrical
